169 X 116 X 35 Mm
External Power Supply 5Vdc/0.6A

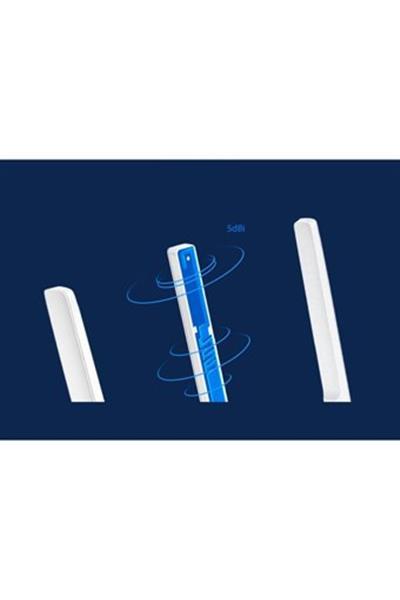

Antenna Type 3 X 5Dbi Fixed Omni Directional Antennas
Signal Rate
11N: Up To 300Mbps (Dynamic)
11G: Up To 54Mbps (Dynamic)
11B: Up To 11Mbps (Dynamic)
Button Reset/Wps Button
Wireless Standards Ieee 802.11N, Ieee 802.11G, Ieee 802.11B
Frequency 2.4 - 2.4835Ghz
Reception Sensitivity
270M: -70Dbm@10% Per
130M: -74Dbm@10% Per
108M: -74Dbm@10% Per
54M: -77Dbm@10% Per
11M: -87Dbm@8% Per
6M: -90Dbm@10% Per
1M: -98Dbm@8% Per
Interfaces
3 10/100Mbps Lan Ports
1 10/100Mbps Wan Port
Certifications CE, Rohs
Package Contents
300Mbps Wireless N Router
MW305R
Power Adapter
Quick İnstallation Guide
Ethernet Cable
Environment
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 90%, Non-Condensing
Storage Humidity: 5% ~ 90%, Non-Condensing
Transmission Power EU≪20Dbm(Eırp)
Wireless Security 64/128/152-Bit Wep / Wpa / Wpa2,Wpa-Psk / Wpa2-Psk
Wireless Functions Wds Bridge
Wan Type Dynamic IP/Static IP/Pppoe/L2TP/Pptp
Management
Parental Control
Access Control
Local Management
Remote Management
Dhcp Server
Port Forwarding Virtual Server, Upnp, Dmz
Dynamic Dns Dyndns?NO-IP
Firewall Security IP And Mac Address Binding
Protocols Ipv4
Guest Network 2.4Ghz Guest Network
